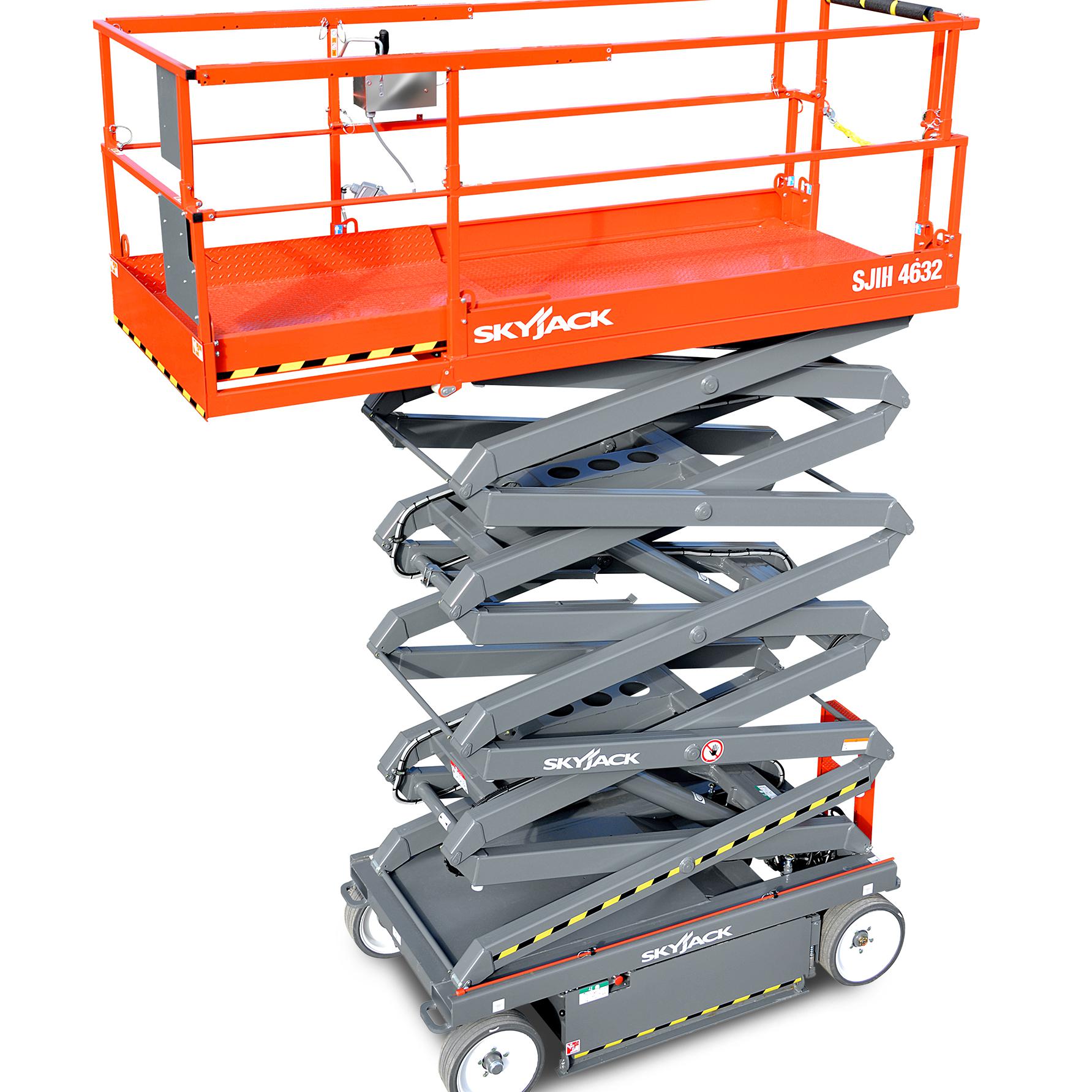

Combining Skyjack's easy to service, low maintenance design features with a high capacity and large platform area, makes the SJIII 4632 suitable for any on-slab application. Featuring variable speed rear wheel hydraulic drive, it offers a working height of 38 ft, along with 25% gradeability. Drivable at full height. Technical Specification : Ground Clearance (Stowed) 3.5" (8.9 cm) Lift Time (With Rated Load) 59 sec Extension Deck (Roll Out) 4' (1.2 m) Work Height 38' (11.6 m) Wheelbase 69" (1.8 m) Raised Platform Height 32 ft (9.8 m) Turning Radius - Outside 93.5"(2.4 m) Maximum Drive Height Full Height Overall Length 91" (2.3 m) Stowed Height 74" (1.9 m) [Rails Down] 88" (2.2 m) [Rails Up] Weight 5,075 lbs (2,302 kg) Ground Clearance 0.75" (1.9 cm) [Raised] Gradeability 25% Turning Radius (Inside) 47.5" (1.2 m) Drive Speed (Raised) 0.6 mph (1 km/h) Maximum # of Persons 2 Overall Width 46" (1.2 m) Drive Speed (Stowed) 2 mph (3.2 km/h) Capacity (Overall) 700 lbs (318 kg)
