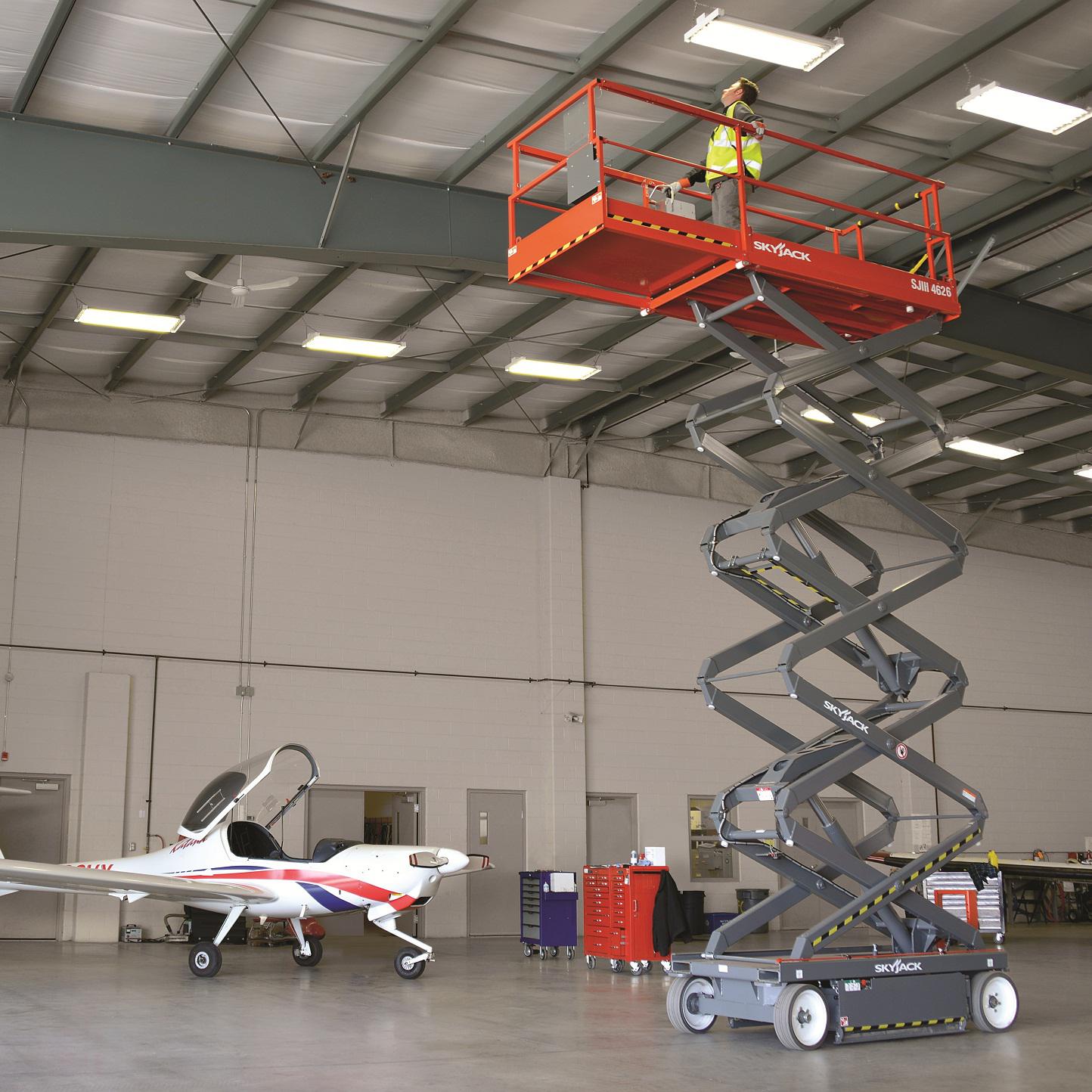

Consistent with Skyjack's robust and reliable design features, the SJIII 4626 offers an easy to service, low maintenance design in a versatile package. Drivable at full height, the SJIII 4626 offers a working height of 32 ft, gradeability of 25%, and features a 4 ft roll out extension deck. Technical Specification : Ground Clearance (Stowed) 3.5 inch (8.9 cm) Extension Deck (Roll Out) 4 ft (1.2 m) Work Height 32 ft (9.8 m) Wheelbase 69 inch (1.8 m) Raised Platform Height 26 ft (7.9 m) Turning Radius - Outside 93.5 inch (2.4 m) Maximum Drive Height Full Height Overall Length 91 inch (2.3 m) Stowed Height 70.5 inch (1.8 m) [Rails Down] 84.5 inch (2.1 m) [Rails Up] Weight 4,700 lbs (2,132 kg) Ground Clearance 0.75 inch (1.9 cm) [Raised] Gradeability 30% Turning Radius (Inside) 47.5 inch (1.2 m) Drive Speed (Raised) 0.6 mph (1 km/h) Maximum # of Persons 3 Overall Width 46 inch (1.2 m) Drive Speed (Stowed) 2 mph (3.2 km/h) Capacity (Overall) 1,000 lbs (454 kg)
On Inquiry
On Inquiry
