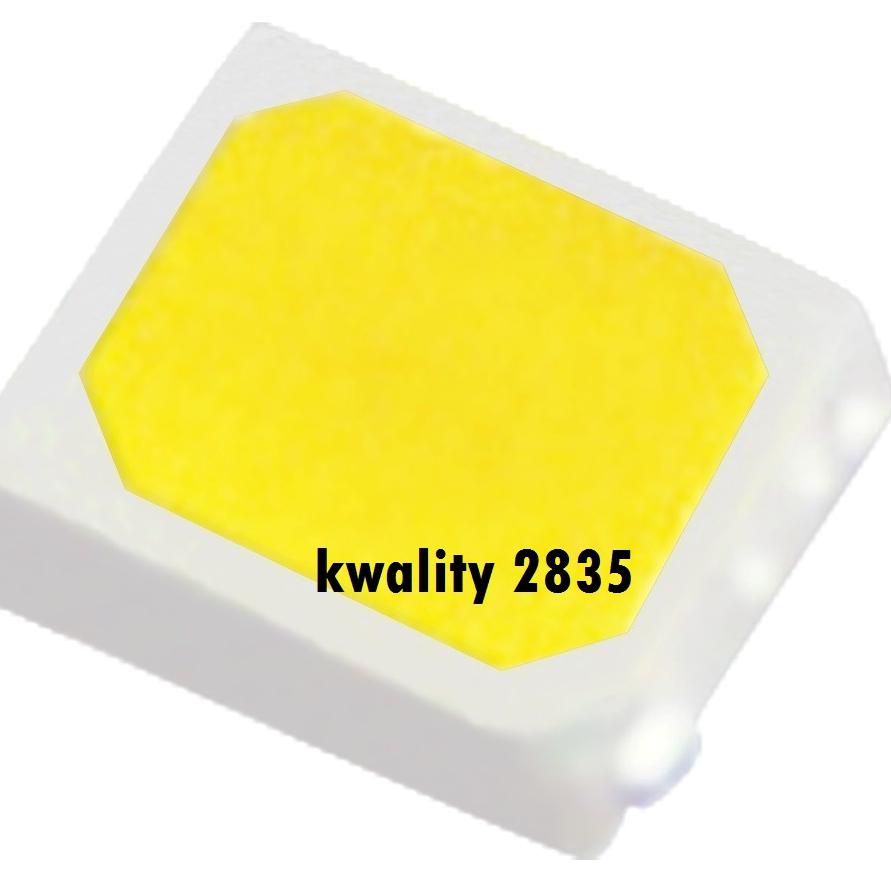

0.2Watt 0.5 Watt Power SMD LED: The KLSL2835W, SMD LED are ideal for EVERY APPLICATION be it Tube Lights, Downlight, Lanterns& even Street Lights!; These 2835W SMD LEDs have emerged as strong contenders for down-lights, bulbs as they bring down the costs of power SMD LEDs by whopping 40%. With LPW (Lumens per Watt) of 130 and enhanced reliability. Features: Power Watts : 0.2/0.5 Watts Current Max : 60/150 mA Voltage Vf : 3-3.3 Volts Lumen S : 24/26 Lumens, 65 Lumens SIZE(LxBxH) : 2.8 mm x 3.5 mm x 0.75 mm PLCC -2 Package Extremely wide viewing angle Available on Tape and reel. Moisture sensitivity level: Level 4 Suitable for Reflow Solder Process & SMT Assembly RoHS compliant (RoHS). Specifications: Part No.KLSL2835W Dice Encapsulation @150mA Color Luminous intensity (mcd) Min Luminous intensity (mcd) Typ Luminous flux (lm) Min Luminous flux (lm) Typ Viewing Angle 2q 1/2 KLSL2835W KLSL3228WW WHITE Warm White Yellow Diffused 6500 6100 7100 6800 22 21
