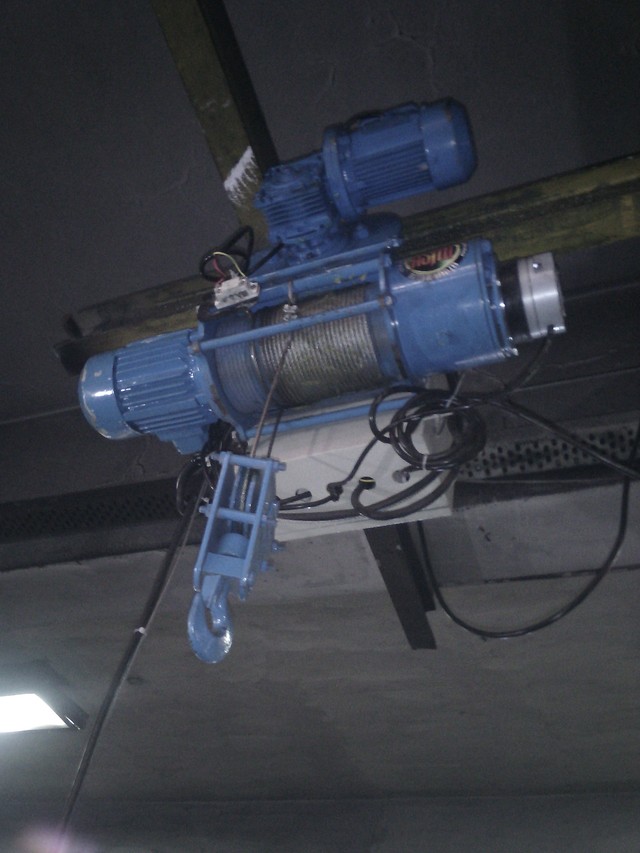

SALIENT FEATURES OF ELECTRIC WIRE ROPE HOIST :- CAPACITY 1 TO 5 TONES DESIGN: RIGGED, MODULAR & HEAVY DUTY DESIGN FOR HEAVY WEIGHT LIFTING EASY TO OPERATE AND MAINTAIN. MOTORS: STURDY, SQ. CAGE, 4/8 POLE, DUTY-S4 25% CDF, INSULATION CLASS F, IP-54 PROTECTION (CONTINUOUS CAST STEEL SECTIONS) INTEGRATED FAIL FREE SAFETY BRAKES GEAR BOX: PRECISION FLAT HELICAL / SPUR GEAR & PINION UNITS, MFG WITH THROUGH-HARDENED & GROUND STEEL ALLOYS. ASSEMBLED IN PRECISE BORED STRUCTURAL PLATES WITH SKF/NTN/FAG BEARINGS. WITH CONTINUOUS SPLASH OIL/GREASE LUBRICATION. BRAKES: SINGLE/DUAL-DISC HIGH TORQUE ELECTROMAGNETIC DISK BRAKES WITH ADVANCED FEATURES LIKE AUTOMATIC BRAKING ON POWER FAILURE. ASBESTOS FREE BRAKE LININGS THAT CAN PERFORM 1 MILLION BRAKING OPERATION. LOW IN MAINTENANCE ELECTRICAL PANEL: MODULAR DESIGN EASY TO INSTALL AND MAINTAIN RELIABLE OPERATION FUSE LESS CIRCUIT, DUCTED WIRING AND COMPACT TERMINALS. DRIVES WITH MOTOR OVERLOAD PROTECTION TO PREVENT OVERLOADING. PAINTING: EVERY PART OF THE HOIST THOROUGHLY SCRUBBED AND PAINTED. BEFORE THE ASSEMBLY DOUBLE COAT OF THE PRIMER IS APPLIED AND AFTER THE FINAL TESTING THE SURFACE COATED WITH TWIN LAYER OF PAINT. ROPE DRIVE: COMPACT DESIGN AND LOW WEIGHT. SUPPORTING STRUCTURE, TROLLEYS AND DRIVE SYSTEMS: THE STANDARD HOIST IN THE CHASSIS CAN BE DESIGNED FOR HEAVY LOAD APPLICATIONS WITH DIFFERENT TYPES OF TRAVELING GEARS. RIGGED DESIGN, LOW HEIGHT ARE SOME OF THE STANDARD FEATURES OF THE HOIST. FURTHER THE ARTICULATED END CARRIAGE JOINTS ENSURE THAT THE WHEELS REMAIN ON THE TRACK AND THE LOAD IS PROPERLY DISTRIBUTED ON THE COMPLETE SYSTEM.
